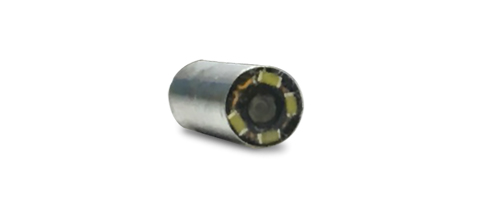

CS1008-PA

• CS1008-PA is Chiyi‘s latest camera module which provides 1280 x 720 resolution at a rate of 60 frames per second (FPS).  Its outer diameter 3.5mm only is well-suited for medical applications such as minimally-invasive endoscopes.   60FPS delivers clear and jitter-free image performance.   High transparent lens provides anti-abrasion and anti-corrosion.  80 degrees viewing angle and 10-80mm/5-50mm (option) focus distance support to diagnose a certain parts of human body sufficiently.

  Compact size, high resolution, excellent image quality and cost effectiveness are the advantages to apply for the next generation of disposable and reusable endoscopes.  These features make CS1008-PA an idea image solution for wide range of applications, including  Anoscope , Proctoscope,  Colonoscope , Laryngoscope, etc.

• FEATURES
• • High definition resolution at 1280 x 720 pixels.
• • 60FPS delivers lag-free, seamless image quality.
• • 30FPS/60FPS switchable under USB mode for different application purpose.
• • Competitive 720P solution at Ø3.5mm with LED Light source.
  • Compatible with Chiyi USB board or Image processing board (option).
  • USB 3.0 or HDMI interface is available (option).
