R1630

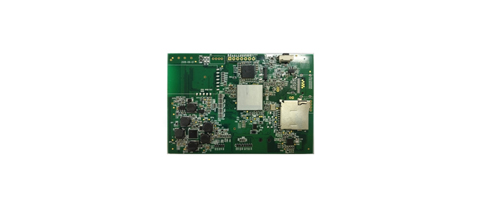

• Image Processing Board

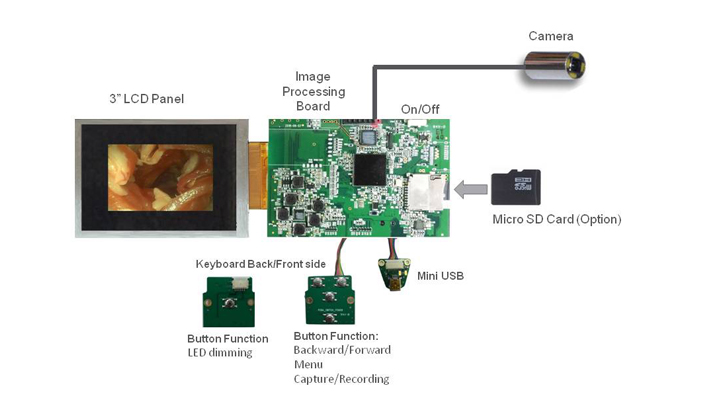

• R1630 is an complete solution integrating with camera modules and 3” LCD panel .  It is the best solution for customers to develop their own portable endoscopic applications easily.

  FEATURES
• •Integrated design for camera module .
• •Capture/recording, Playback and Dimming function.
• •Auto Exposure Mode & Auto White Balance .
• •UI menu with Contrast, Saturation, Brightness, and General Setting for customized adjustment .
  •Including 3" LCD panel (RGB 640 x 480) .
  •SD card storage (SD card excluded).
  •SD card slot or USB2.0 for mass storage purpose .
  •Charged by USB or Li-on rechargeable battery (Option) .
  •Supporting CHIYI models: CS0204-series and CS0202-series camera modules.
  •Specification customized upon request.
  •Dimension: W51mm X L81.10mm.
