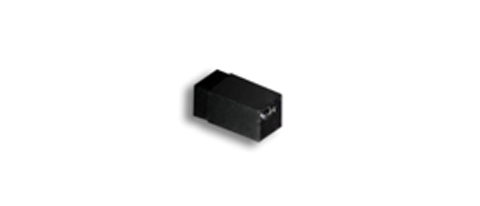

CS0204-SERIES

• Micro Camera Module for Disposable Endoscope Application


  CS0204-Series is a micro camera module well-suited for medical applications such as minimally-invasive endoscopes.   This micro camera for medical applications offers outstanding optical performance with integrated illumination.  It is also a suitable camera solution for a wide range of applications, including angioscope, Encephaloscope, Ophthalmoscopy, Arthroscopy, dental, veterinary, industrial and wearables.




  FEATURES

• •Optical performance with 400 x 400 effective pixel in small size .
• •Precision optical design with near focus distance in range of 5mm-50mm .
• •Wide 120-degree FOV for micro surgery purpose.
• •Manual white balance and screen freeze.
  •Compact, lightweight and modular.
  •Different light sources, LED or Optic Fiber.

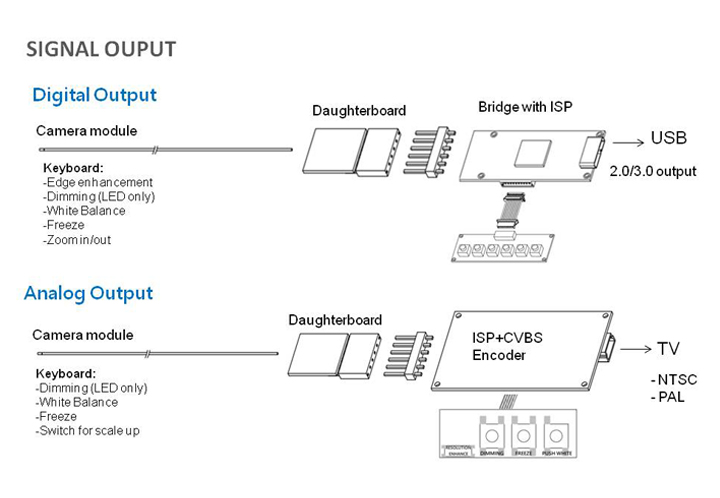

  •USB or TV interfaces to shorten developing schedule.
  •Capture/Recording/Mass Storage functions are available by request.

•
