CM0104-SERIES

• Micro Camera Module for Disposable Endoscope Application

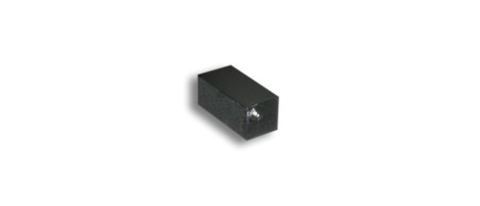

  CM0104-SA is one of the world's smallest commercially complete camera modules. Designed especially for small-outer-diameter medical endoscopes and catheters, It is also a suitable camera solution for a wide range of applications, including angioscope, Encephaloscope, Ophthalmoscopy, Arthroscopy, dental, veterinary, industrial and wearables.




  FEATURES

• •Excellent optical performance with 200 x 200 effective pixel in small size.
• •Outstanding precision optical design with near focus distance in range of 3mm-30mm and an wide 120-degree FOV for micro surgery purpose.
• •Multiple fuctions for different applications:  scale up to 400*400 for output display switchable, manual white balance and screen freeze functions
• •Very compact, lightweight and modular

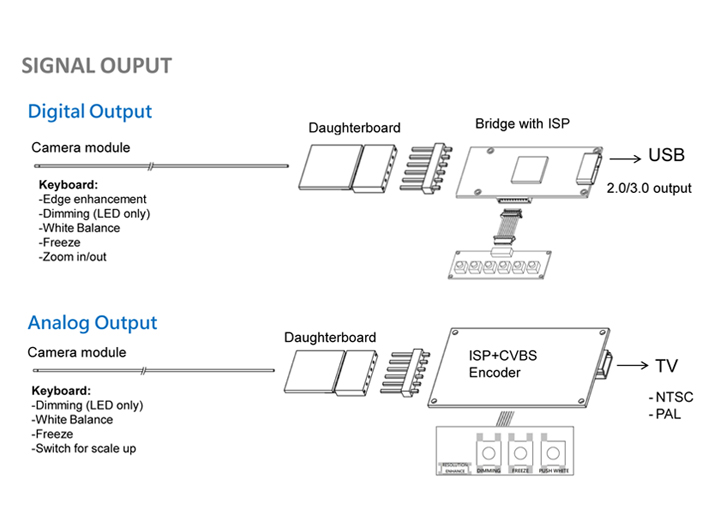

  •Camera module with different light sources and USB or TV interfaces to shorten developing schedule
  •Customization upon request

•
